Astroflame Passive Fire Protection Products

Trade Name: ASTRO EJ SEAL

Intumescent Expansion Joint Seals

Fire Rated Expansion Joint Seal / Linear Joint Seal

Available up to 150mm gap size.

Joint movement capability of +/- 50%.

Fire resistance testing to EN 1366-4 E 120, EI120 and BS 476 240mins.

IET (IEE) 17th Edition Fire Stop Compliant to Regulation 527.1-3 - Electrical Installations.

BS 7671-2008 Chapter 42 & 52 - Electrical Installations Fire Resistance.

Acoustic Isolation to EN 10140 to 22dB.

Air Permeabiltiy testing to EN 1026 to 600Pa - 100Pa 3.3/1.7 m3/h/m2 with FLEXI COAT.

Highly flexible and water resistant.

Maintenance free.

Intumescent expansion joint seals product range
Certifire 3rd Party Accreditation

Description

All expansion and movement joints in a fire separating wall and floor must be fire stopped with a material that will accommodate the require movement whilst providing the necessary degree of fire integrity.

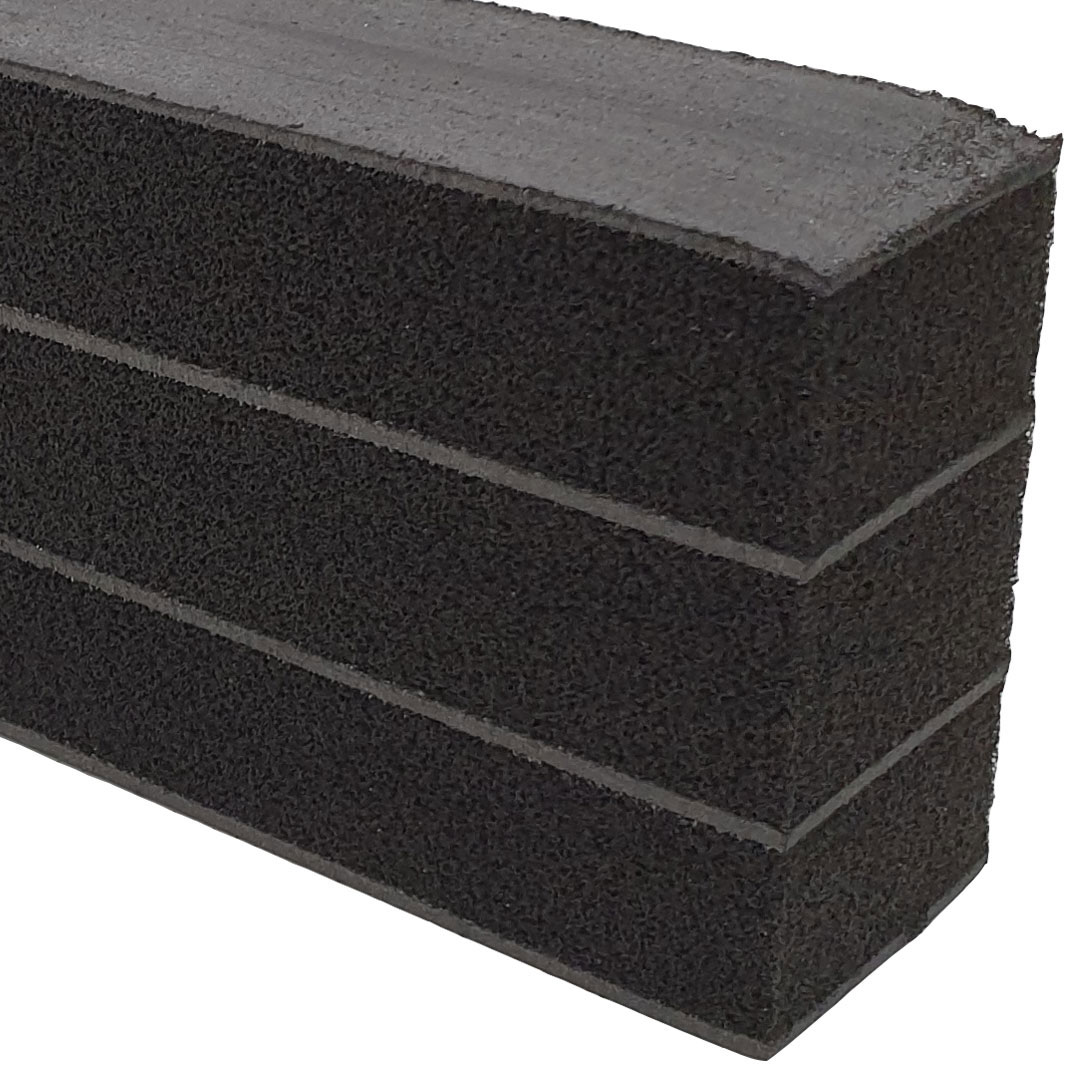

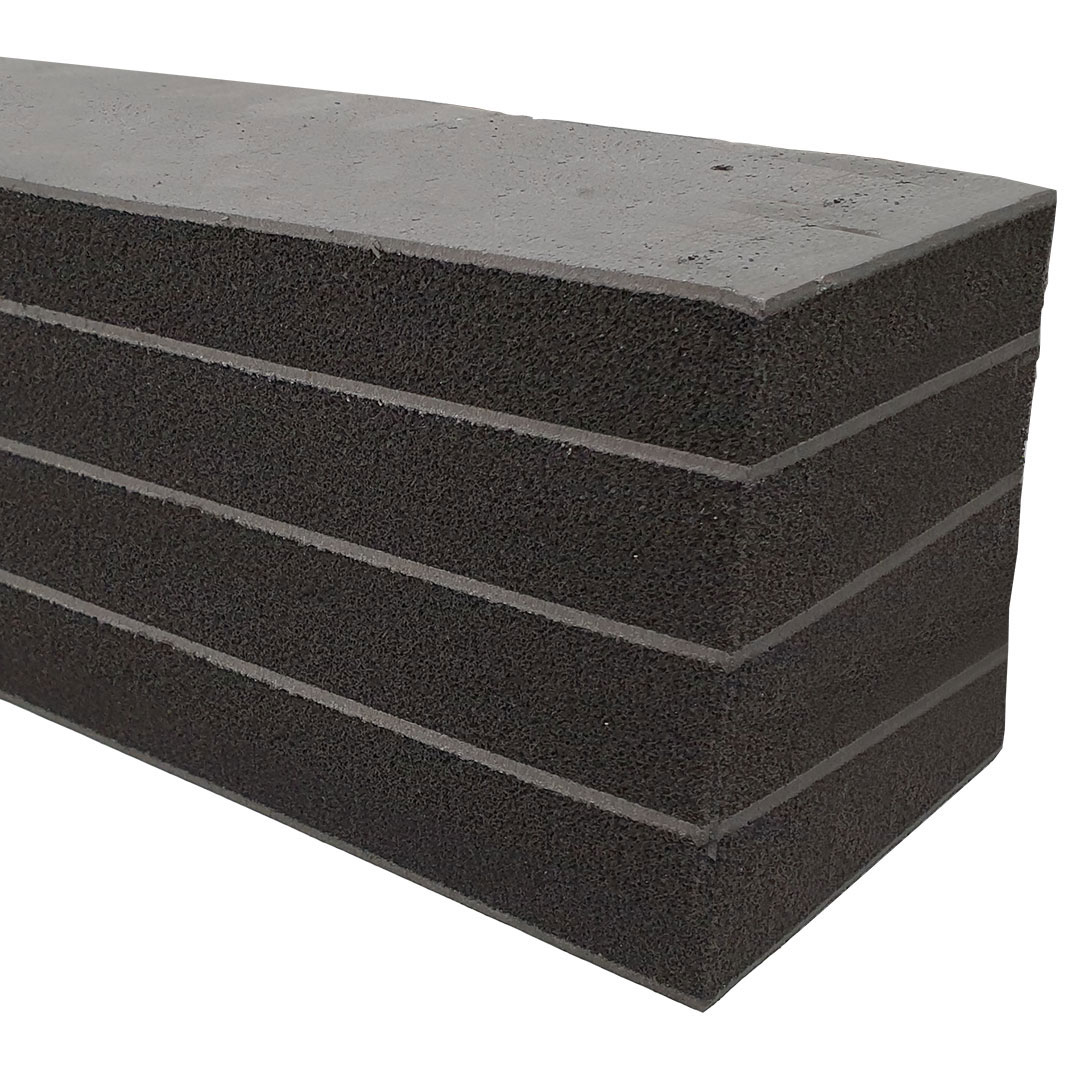

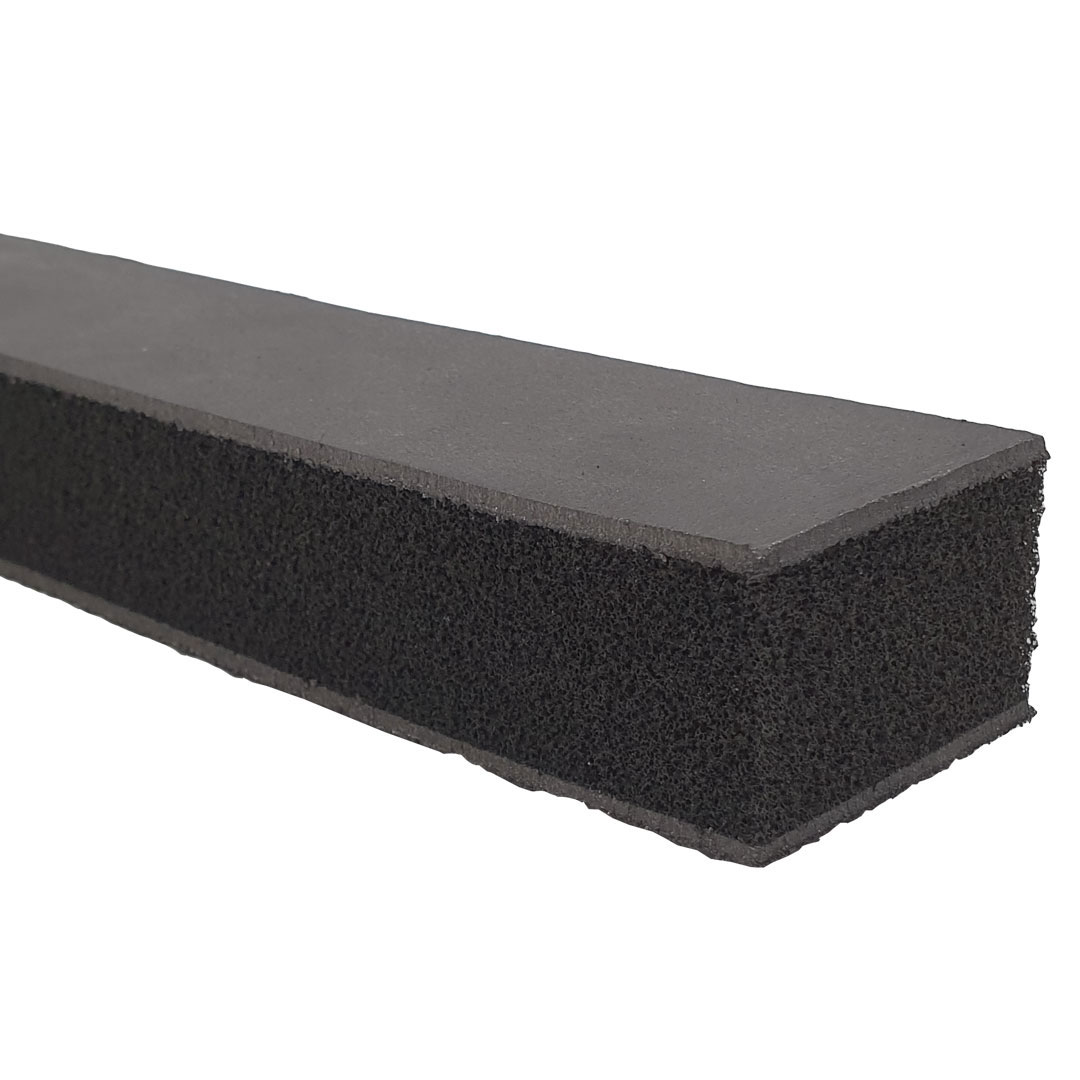

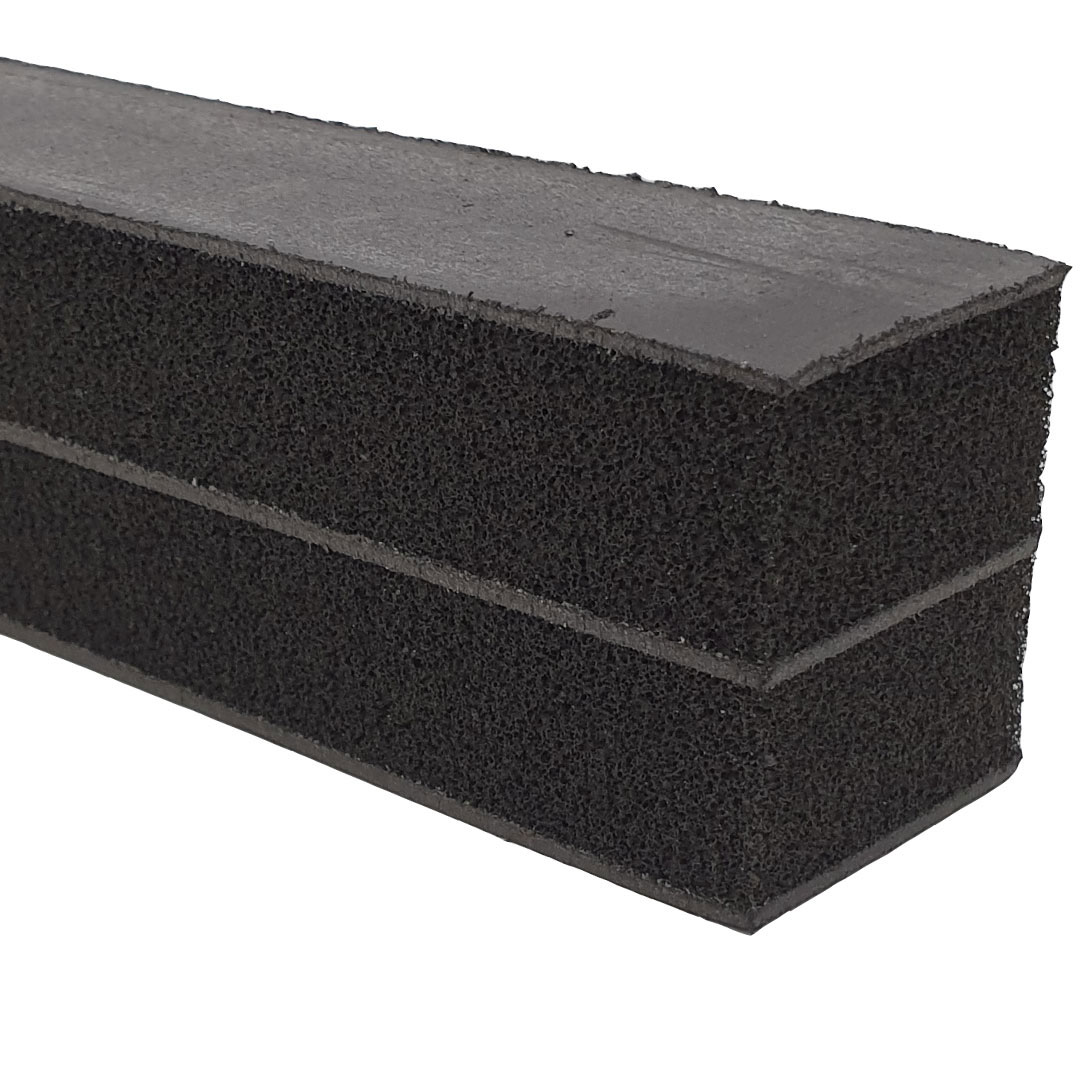

ASTROflame Intumescent Expansion Joint Seal is an elastomeric foam laminated with a graphite-based, intumescent compound on both sides. It is designed to perform as a 2 or 4-hour barrier in construction movement joints, when tested to EN 1366-4
and BS476.

Designed for long linear joint installations in both horizontal and vertical applications it is a flexible and water resistant seal that expands when exposed to heat. The carbonaceous char formed by the graphite prevents the spread of fire through the joint thus ensuring the integrity of the compartment wall/floor is maintained.

Tested in block wall, concrete and masonry. Tested in concrete floors. Tested in linear joints up to 150mm wide.

Tested with cables, cable bunches, cable trays and cable trunking.

Joint movement capability of +/- 50%.

Maintenance free.

Halogen free, resists fungiand vermin

Properties and Specification

Properties table - Intumescent Linear Gap Seal

Areas of Use

Expansion Joint Seal is an extremely versatile filler material and can be used :

Between steelwork and blockwork where deflection and movement could occur.

In movement joints with blockwork walls and floors.

Top of wallhead to the underside of the floor - although gaps could be uneven ASTROflame Intumescent Expansion Joint Seal is extremely compressible and should accommodate to any irregularities.

Availability

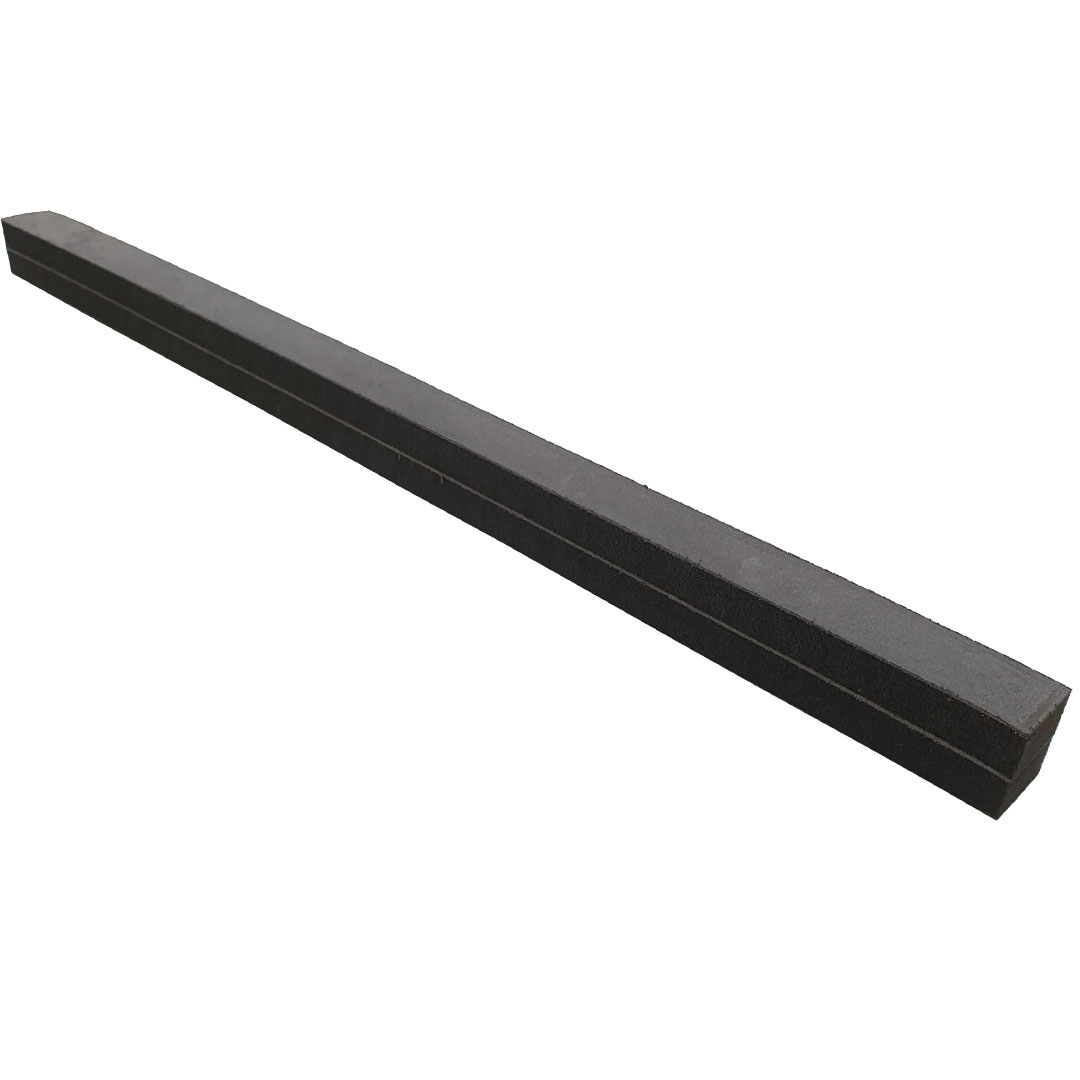

Supplied in metre lengths. When ordering please state product code and number of metre lengths required.

120 Minute Fire Integrity

Gap Size

Dimensions

Integrity

Insulation

Product Code

Up to 10mm

12 x 12mm

120 minutes

120 minute

AFEJ10/120

11 20mm

29 x 12mm

120 minutes

30 minutes

AFEJ20/120

21 25mm

32 x 20mm

120 minutes

30 minutes

AFEJ25/120

26 35mm

53 x 20mm

120 minutes

60 minutes

AFEJ35/120

36 50mm

61 x 35mm

120 minutes

60 minutes

AFEJ50/120

51 65mm

85 x 40mm

120 minutes

60 minutes

AFEJ60/120

66 75mm

90 x 50mm

120 minutes

120 minutes

AFEJ75/120

76 100mm

126 x 100mm

120 minutes

120 minutes

AFEJ100/120

101 120mm

147 x 125mm

120 minutes

120 minutes

AFEJ120/120

121 150mm

170 x 100mm

120 minutes

120 minutes

AFEJ150/120

240 Minute Fire Integrity

Gap Size

Dimensions

Integrity

Insulation

Product Code

Up to 10mm

12 x 25mm

240 minutes

120 minutes

AFEJ10/240

11 20mm

29 x 25mm

240 minutes

120 minutes

AFEJ20/240

21 25mm

32 x 30mm

240 minutes

60 minutes

AFEJ25/240

26 35mm

53 x 30mm

240 minutes

60 minutes

AFEJ35/240

36 50mm

61 x 50mm

240 minutes

120 minutes

AFEJ50/240

51 75mm

90 x 75mm

240 minutes

120 minutes

AFEJ75/240

76 100mm

126 x 125mm

240 minutes

240 minutes

AFEJ100/240

101 125mm

147 x 125mm

240 minutes

240 minutes

AFEJ125/240

126 150mm

170 x 125mm

240 minutes

240 minutes

AFEJ150/240

Packing

Sold individually in metre lengths.

To Order & Specify

To order or specify: Quantity / Trade name / Product Ref / Size (Width in mm) / Fire Integrity Rating.

Typical wording: 10 / ASTRO EJ SEAL / AFEJ20/120/ 20mm / 120 mins

Fire Test or Assessment Report

Fire resistance testing to EN 1366-4 E 120, Ei120 and BS 476 240mins.

IET (IEE) 17th Edition Fire Stop Compliant to Regulation 527.1-3 - Electrical Installations.
BS 7671-2008 Chapter 42 & 52 - Electrical Installations Fire Resistance.

Acoustic Isolation to EN 10140 to 22dB.

Air Permeabiltiy testing to EN 1026 to 600Pa - 100Pa 3.3/1.7 m3/h/m2 with FLEXI COAT

Certifire 3rd Party Accreditation

Installation

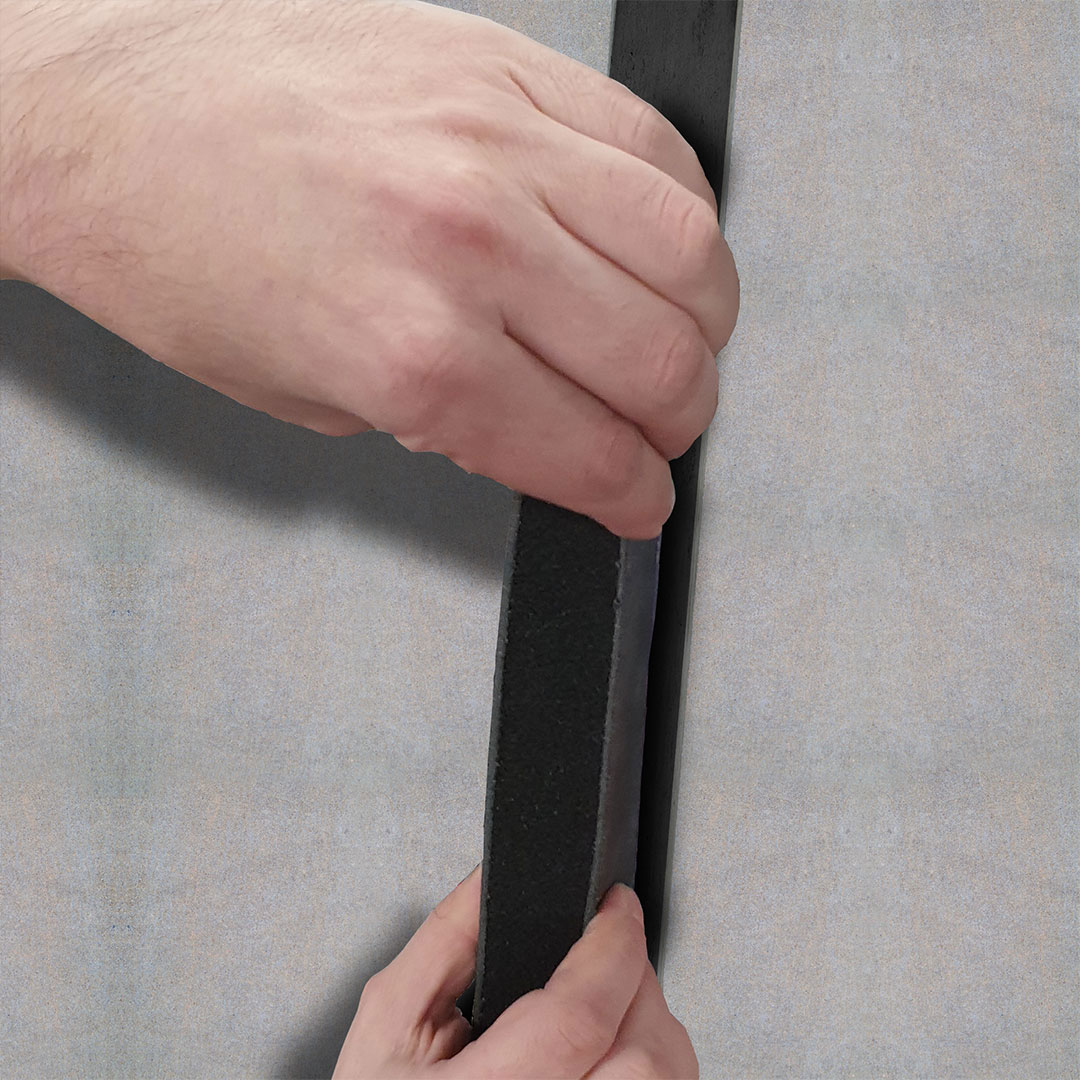

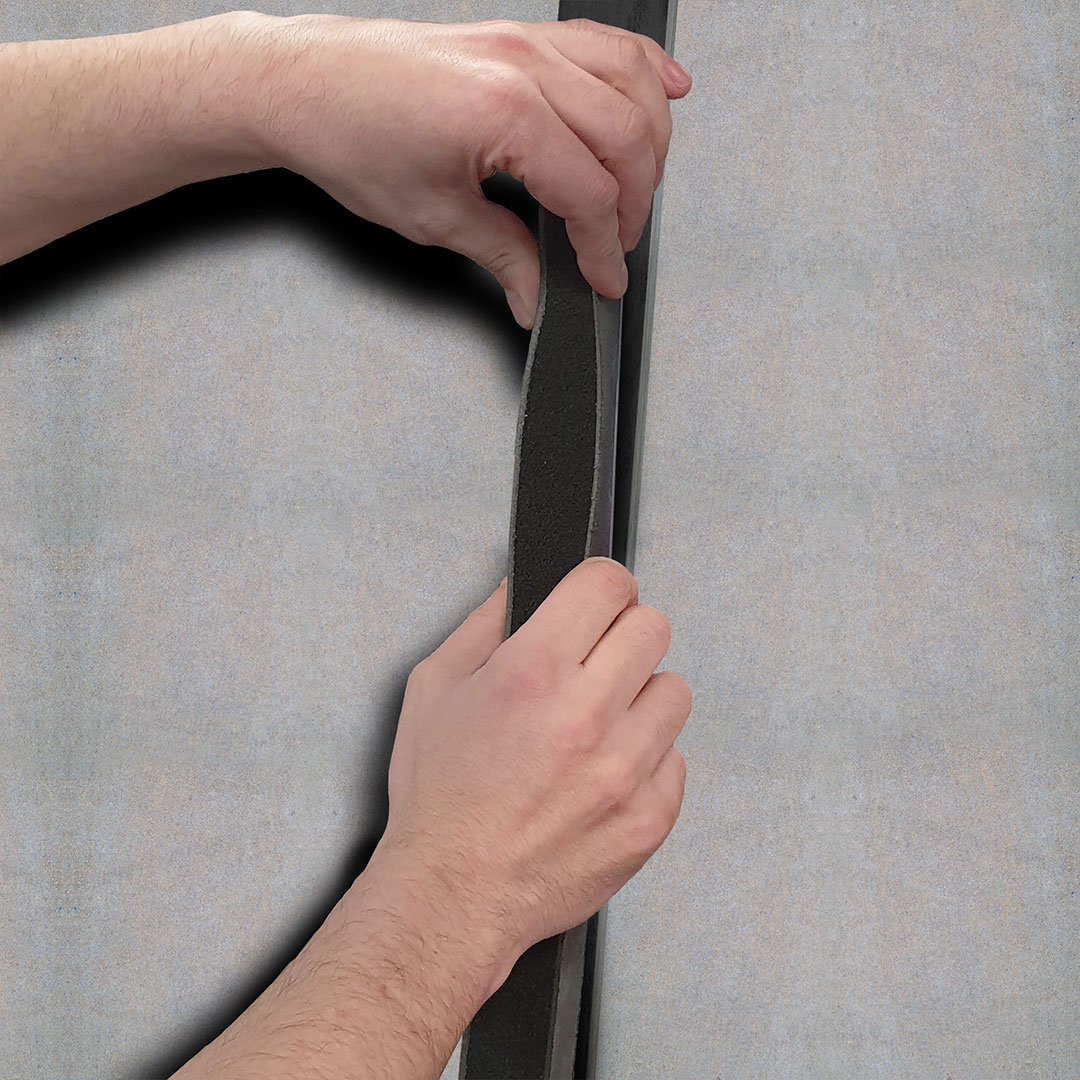

To install compress a pre-cut length of intumescent Expansion Joint Seal, insert into the joint and release.
A minimum compression of 15% per thickness of EJS material is recommended to ensure a tight friction fit.

Health and Safety

The product does not present any known health hazards during or after installation. Normal good industrial and personal hygiene practises should be observed.

Environmental Impact

Low VOC (air quality).
No Power Tools required for installation (no energy source required).
Dust free.
Low Ozone Depletion Potential (ODP).
Low Global Warming Potential (GWP).
No water pollution.
Smoke and Air Tightness.
Noise Reduction.
Thermal Insulation.
Recycling of Packaging.
Avoidance of Air Filtration.
Does not emit halogenated by-products.
Contains no raw materials known to have an estrogenic effect.
The life cycle of is over 15 years.
