Astroflame Passive Fire Protection Products

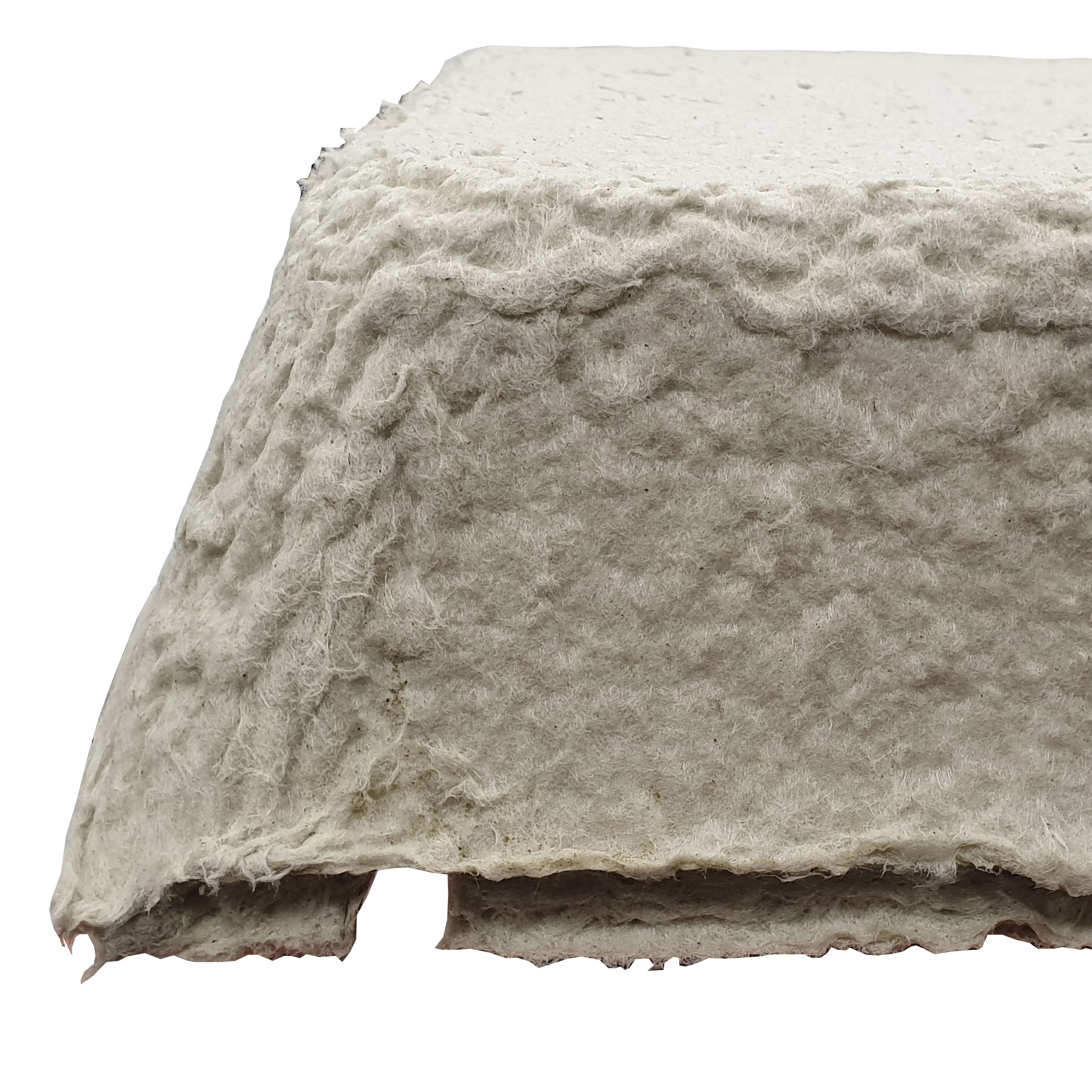

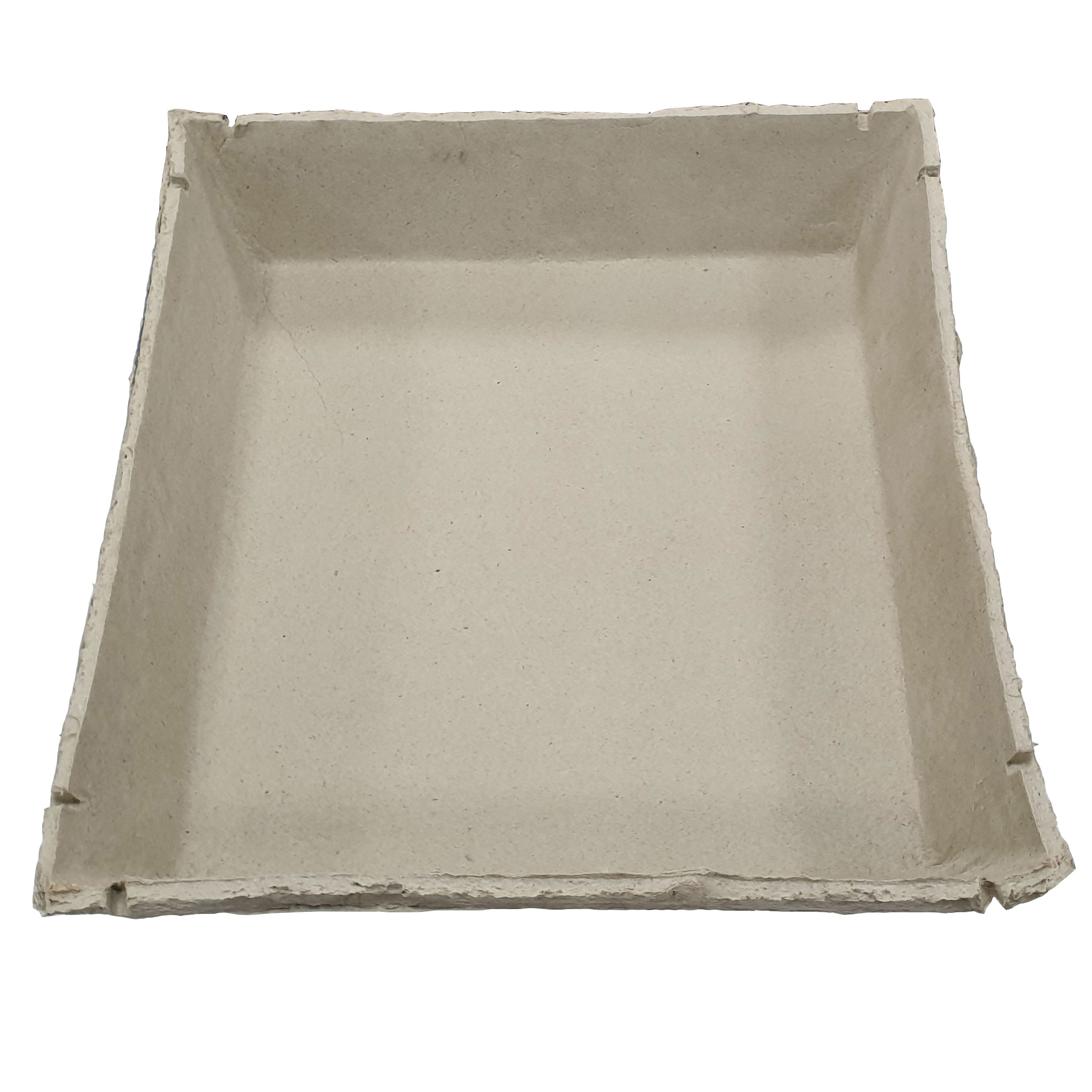

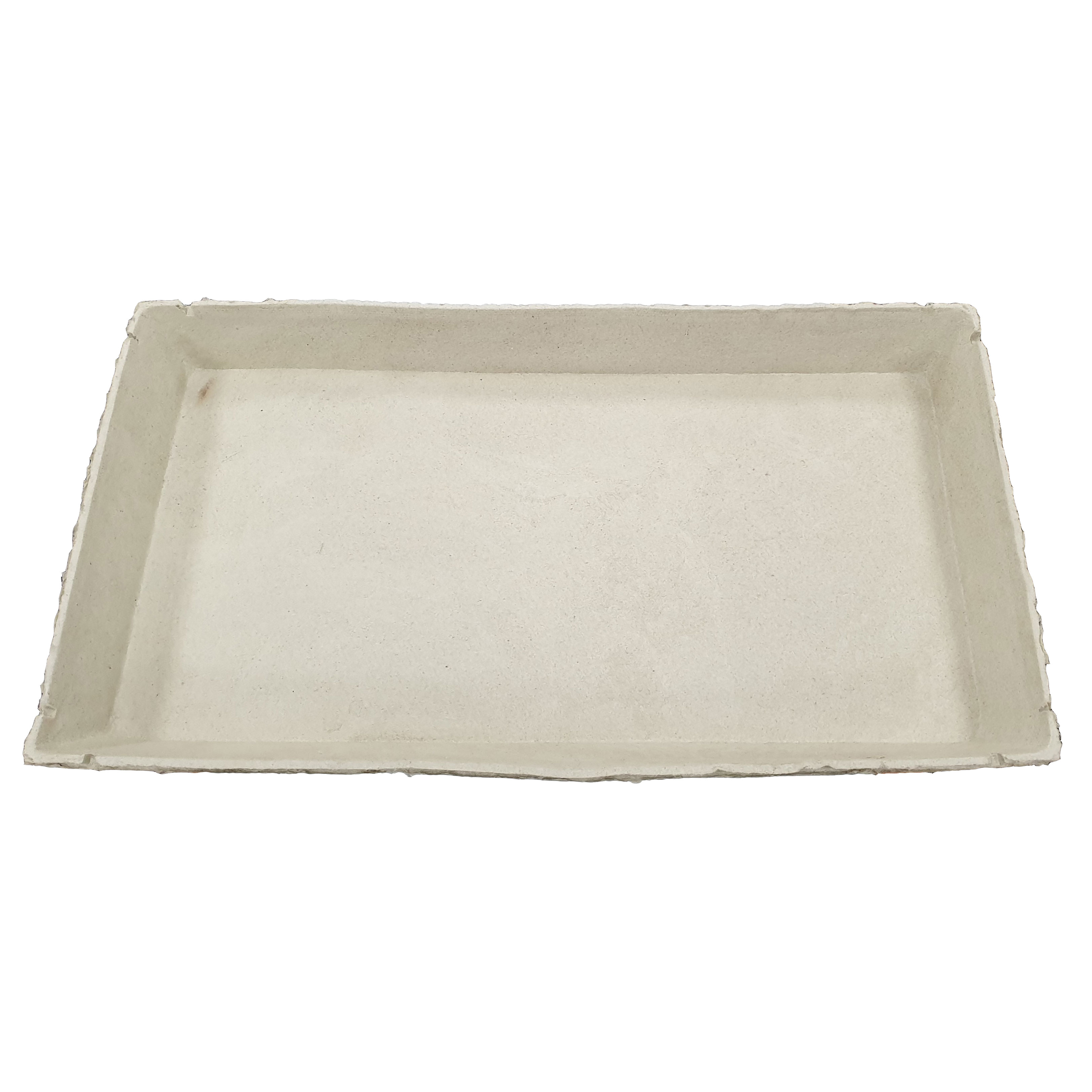

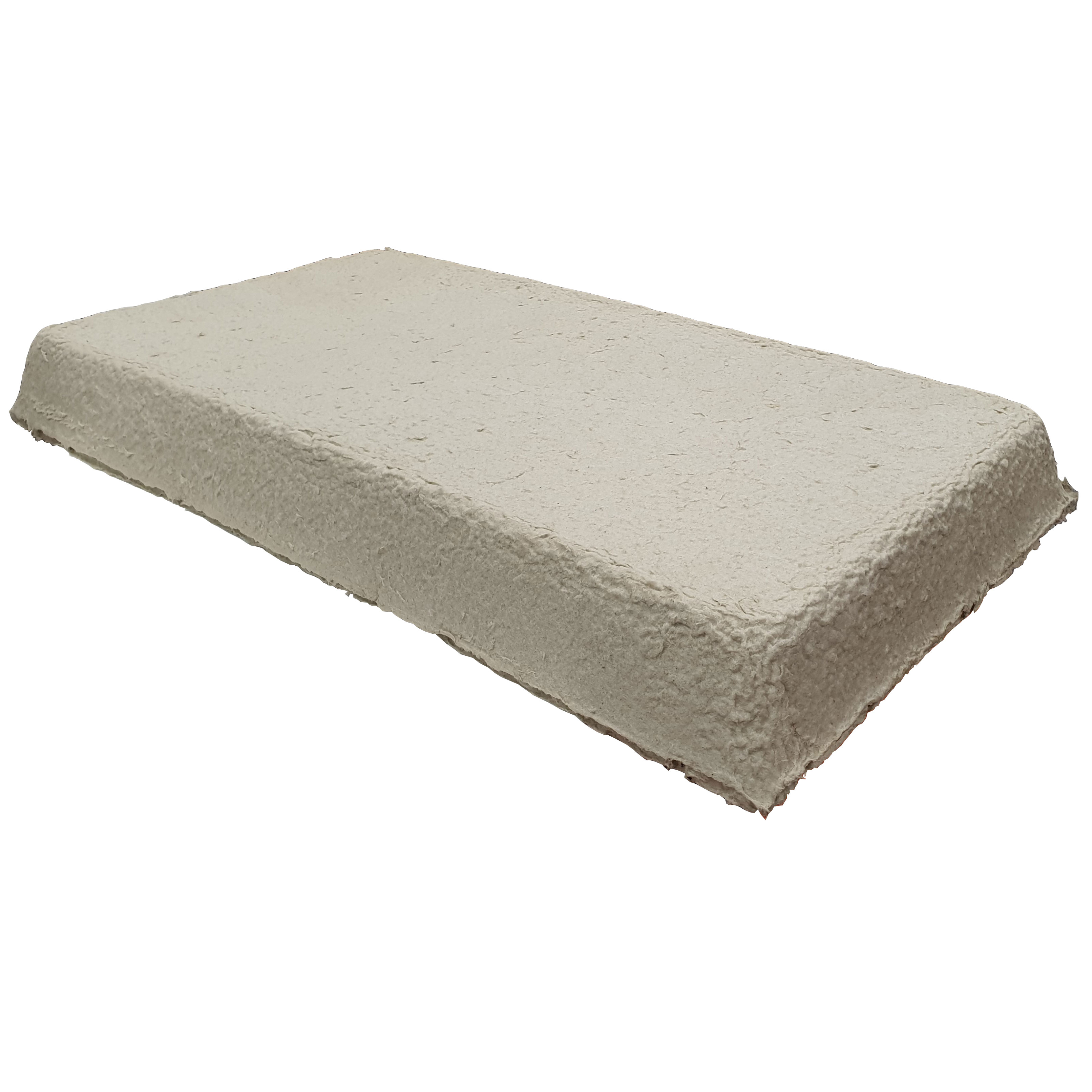

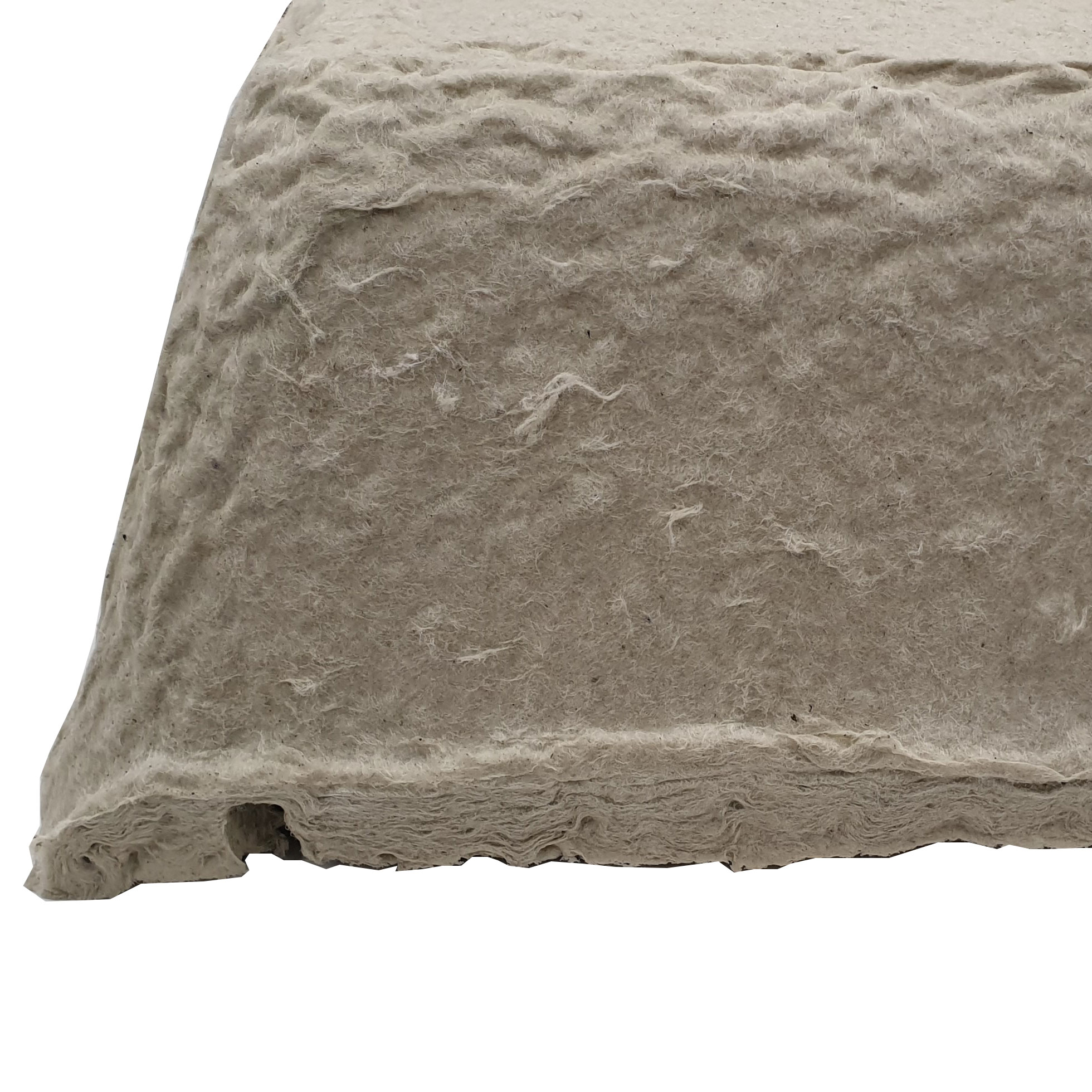

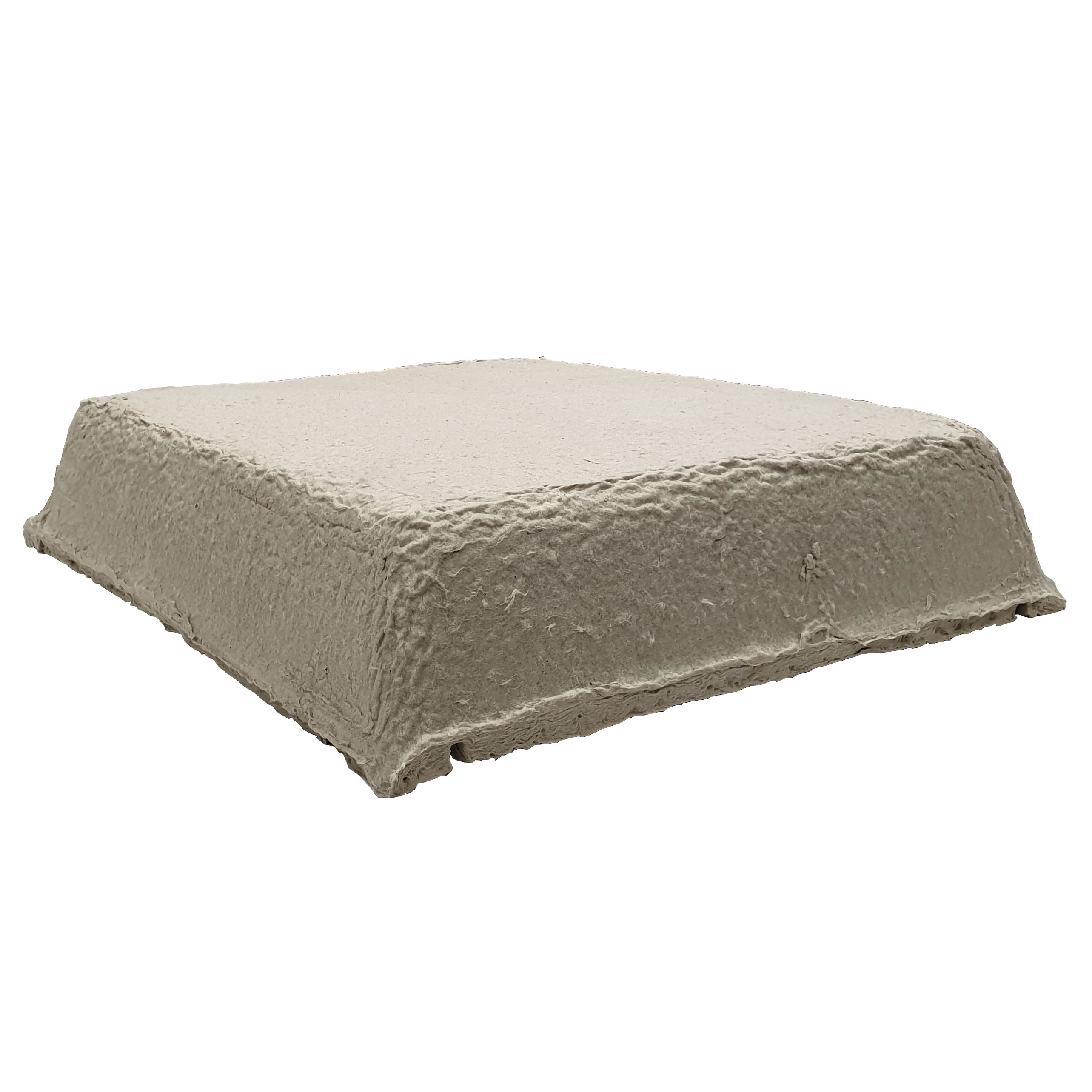

Trade Name: ASTRO LUMI COVER

Luminaire Cover

Fire Hood - 60 minute fire rated Luminaire Cover

BS 476 Part 23:1987

Restores and maintains the fire protection performance of the ceiling

Maintains integrity - prevents fire from penetrating the ceiling void

Simple to fix above or below ceiling - in minimal time

No clips, screws, drilling or additional support required.

Sizes to fit a wide range of modular 600 x 600mm and 1200 x 600mm fittings.

Lightweight: 1.5 - 2.5 kg

Cost effective.

NHBC Type Approval

NHBC and LANTAC Approval

Fire Hood - Recessed luminare covers

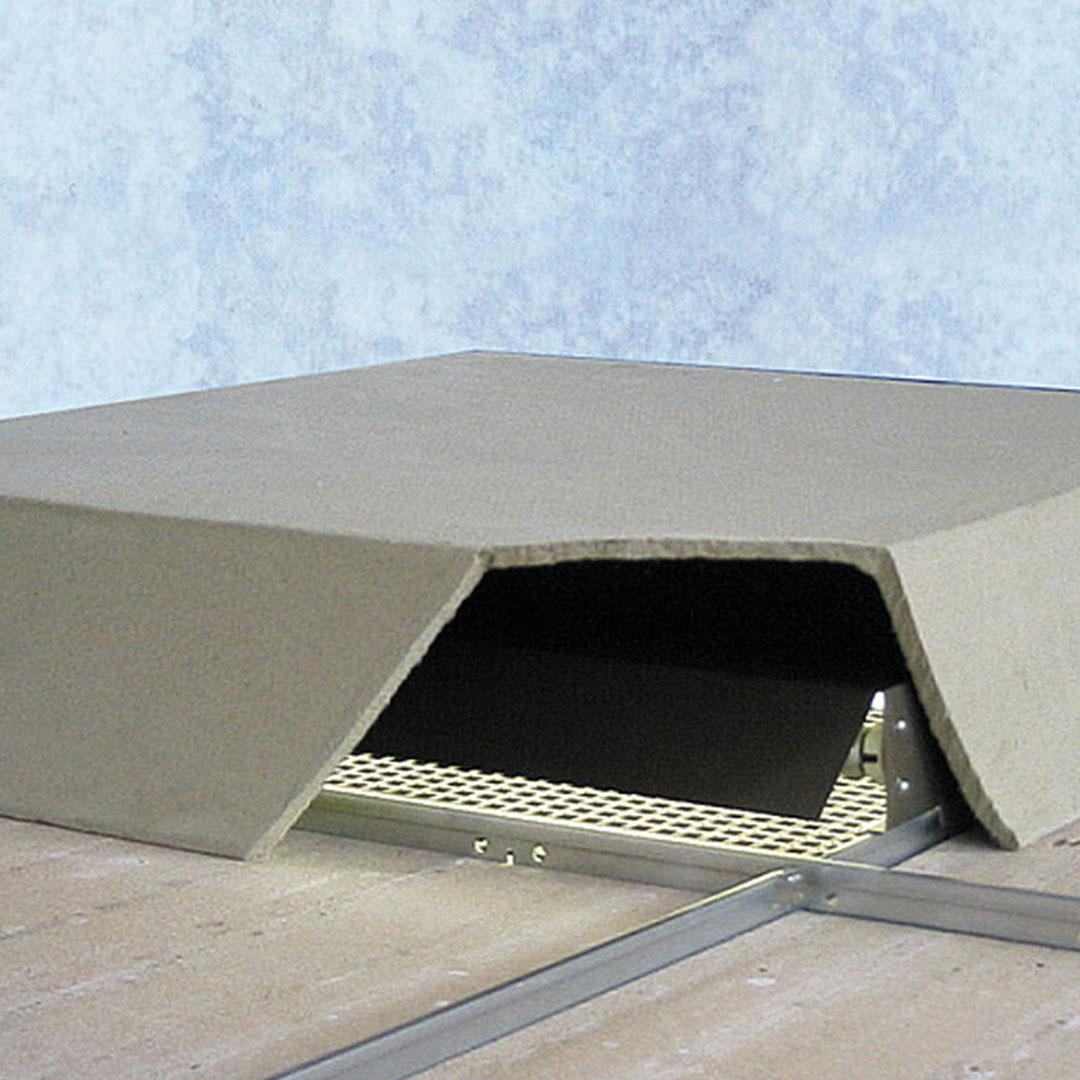

Luminaire cover - cutaway view

Description

Recessed luminaires or modular light fittings are widely used in commercial buildings. Each ceiling is subject to fire regulations and where applicable the ceiling construction needs to be fire rated.

When a ceiling tile is replaced by a recessed luminaire, the integrity of the ceiling’s construction and its ability to perform in a fire are reduced significantly.

To combat this ASTROFLAME, as part of its continuing development of passive fire protection solutions, has developed a Recessed Luminaire Cover for use in 30 and 60 minute fire rated ceilings.



Areas Of Use

Easy to install lighting fire hood The Luminaire cover has been developed to provide maximum protection for ceilings where fire resistant tiles have been replaced by light fittings.

The cover has been designed to allow for ease of fitting. It is self locating and cannot be fitted incorrectly.

The cover also gives additional insulation protection to the ceiling void reducing the chance of ignition of accumulated dust and insulation. The cover is unaffected by moisture and is non toxic.

With the cover in place, the modular light fitting can be installed as normal.



Fire Test and Assessment Reports

BS Standard 476 part 23 for in excess of 30 or 60 mins rating
Report CC 203791C
NHBC Type Approval.

Availability

In 600x600mm and 1200x600mm sizes.

ASTRO LUMICOVER

Type

Sizes

Code

Square

600 x 600 mm

AFLUMICOVS

Rectangular

1200 x 600 mm

AFLUMICOVL



Packing

Available to order in any quantity.

To Order & Specify

Please quote- Quantity / Traden ame/ Product Ref
Typical wording- 10/ ASTRO LUMICOVER /AFLUMICOVS

Maintenance

The cover requires no maintenance and is easy to remove for maintenance of the light fitting.

Health and Safety

The product does not present any known health hazards during or after installation. Normal good industrial and personal hygiene practises should be observed.



As part of our policy of ongoing improvements, we reserve the right to modify, alter or change product specifications without giving notice. Product illustrations are representations only. All information contained in this document is provided for guidance only, and as ASTROFLAME FIRESEALS LTD has no control over the installation methods of the products, or of the prevailing site conditions, no warranties expressed or implied are intended to be given as to the actual performance of the products mentioned or referred to, and no liability whatsoever will be accepted for any loss, damage or injury arising from the use of the information given of products mentioned or referred to herein.

The above information to the best of our knowledge is true and accurate and based upon current test data and is supplied for your guidance only. Customers should satisfy themselves to the suitability of the product in its intended use and no guarantee is given or implied since the conditions of actual use are beyond our control. ASTROflame (Fireseals) Ltd, disclaim any liability for loss, damage or other expense arising from the use of information, data or products mentioned or referred to and reserve the right to change any details or specifications without notice.
