Fire Stop Products | Astro Ceiling Fan Firestop

>Trade Name: Astro Ceiling Fan Firestop

Intumescent Ceiling Fan Firestop

Email to a Friend Share this product page from Astroflame on Facebook Share this product page from Astroflame on Twitter Share this product page from Astroflame on Google+ Share this product page from Astroflame on LinkedIn Share this product page from Astroflame on Pinterest

View All Fire Stopping Products Download The Fire Stopping Brochure

Astro Ceiling Fan Firestop

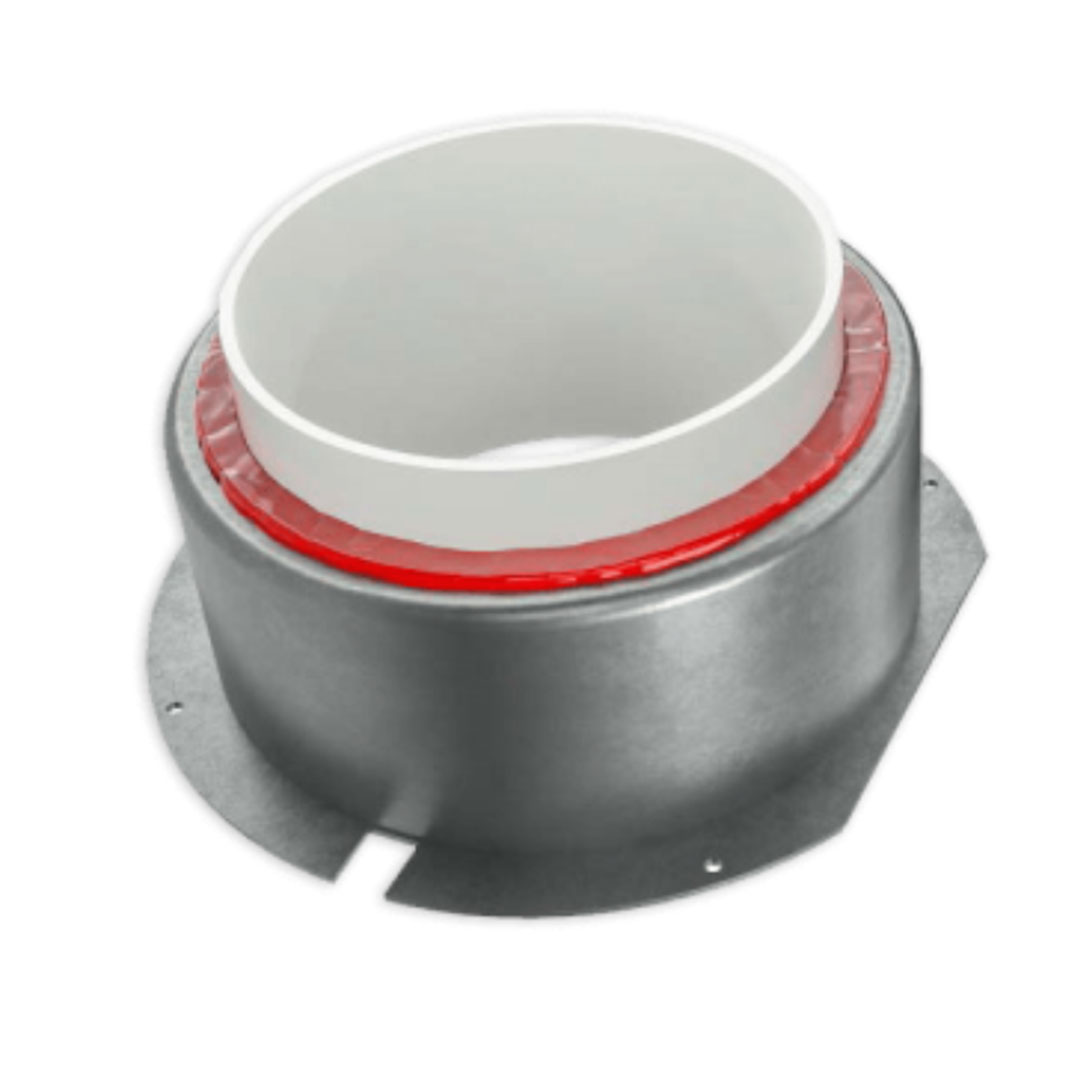

Intumescent Ceiling Fan Firestop 100mm diameter

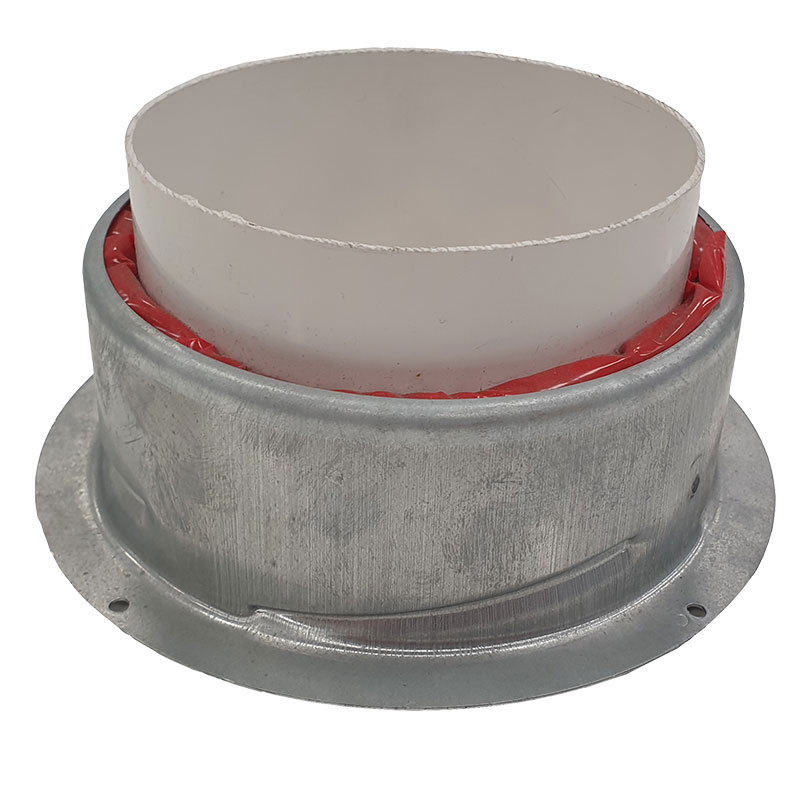

Fire Rated Ceiling Fan Product 100mm diameter

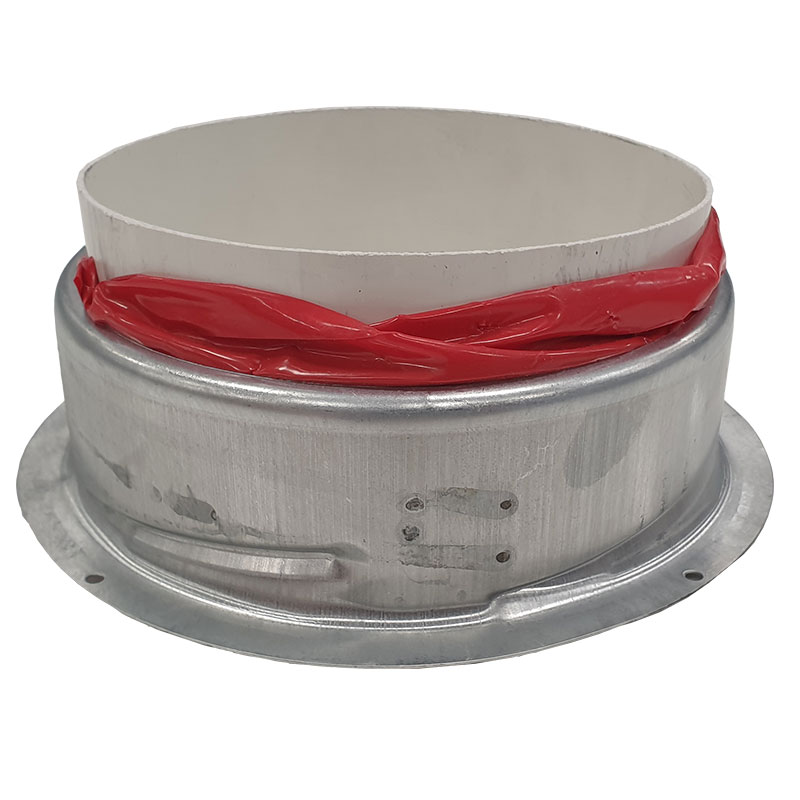

Fire Rated Ceiling Fan Product 125mm diameter

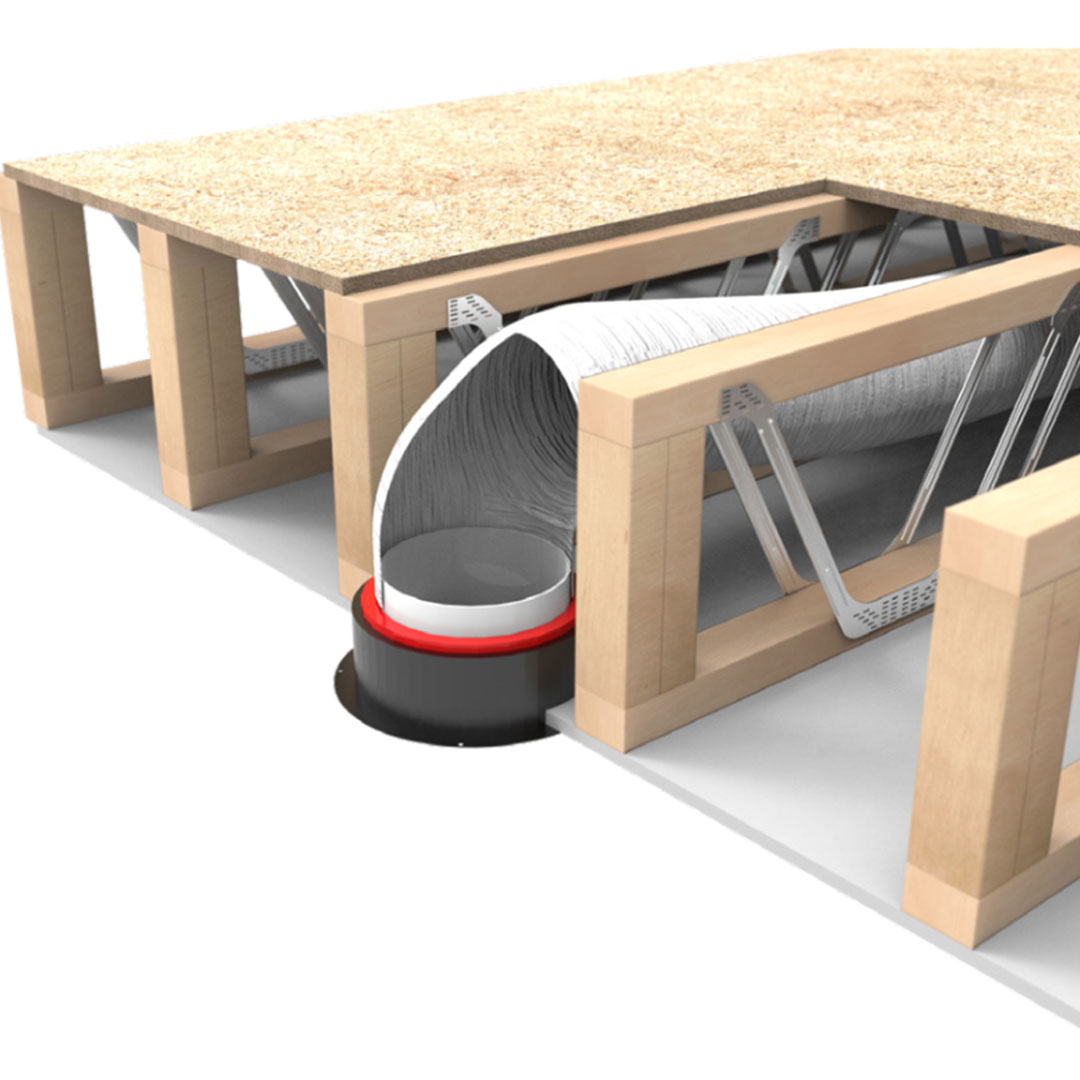

Fire Rated Ceiling Fan

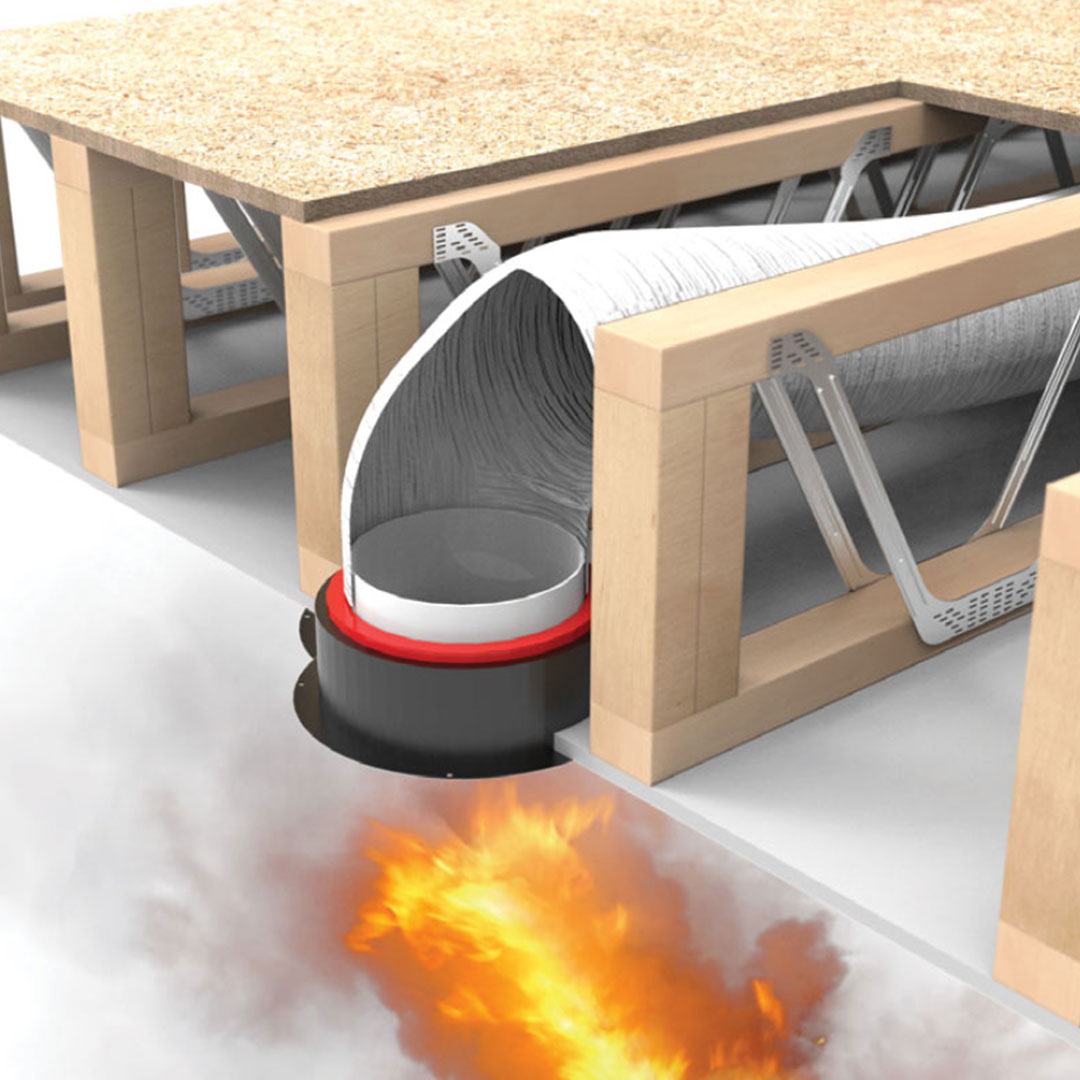

Test Image On The Astro Ceiling Fan Firestop
full size product image from Astroflame


Fire Protection solution - Fire Rated Ceiling Fan
FR Ceiling Fan Product 100mm dia
FR Ceiling Fan Product 100mm diameter
FR Ceiling Fan Product 125mm diameter
100mm and 125mm Fire Rated Ceiling Fans
30 Minute Fire Rating Astro Ceiling Fan

> Quick Overview


TO ORDER & SPECIFY

Telephone Astroflame 01329 844 500



Email Astroflame sales@astroflame.com



PDF Data Sheets Download PDF Data Sheets



Sign Up for Updates & Offers

For in-stock items orders received before 2pm (Monday-Friday) are generally dispatched for delivery on the following working day (Monday-Friday).


> Product Description

The Astro Ceiling Fan Firestop is an intumescent penetration seal designed to firestop the hole made in a ceiling where recessed ceiling fans are installed. It has been specifically developed to provide fire protection for penetrations made in floor/ceiling systems for 100mm and 125mm ceiling fans.

In a fire situation, the intumescent lining of the Ceiling Fan Firestop expands to seal off the opening in the ceiling, effectively firestopping the ceiling layer so that the overall fire resistance rating of the floor/ceiling system is maintained.

Recessed ceiling fans are widely used in both domestic and commercial buildings. Once a hole is made in the ceiling for a fan, the integrity of the construction and its ability to perform in a fire is reduced significantly. The penetration must be fire stopped in order to reinstate the original fire rating of the ceiling/floor construction as required within Building Regulations.

The Astro Ceiling Fan Firestop incorporates a steel mounting ring with integral intumescent lining and duct connector which is fixed into the ceiling lining and allows the ceiling fan to be installed as normal. Please check with Astroflame for compatibility with different Ceiling Fan Types.

> Product Availability

Product Code Product Description Diameter Colour
AFCFFS100 Astro Ceiling Fan Firestop 100mm Silver
AFCFFS125 Astro Ceiling Fan Firestop 125mm Silver

> To Order & Specify

Please contact us and quote the following - Quantity / Product Code / Product Description / Size / Colour
Typical example:- 10 / AFCFFS100 / Astro Ceiling Fan Firestop / 100mm / Silver

>> Tel: 01329 844 500 or >> Email: sales@astroflame.com


> Installation

We have technical representatives who provide assistance in the selection and specification of the products on this site and should be consulted for exact installation and product suitability. Ensure an early engagement with ourselves, designers, main contractor and specialist installers before any installation. Other trades and/or manufacturers may need to be consulted. For in-depth information, specification and technical advice please call our Head Office on tel 01329 844 500 or email sales@astroflame.com

> Maintenance

All interested parties, designer, specifier, main contractor and specialist installers should provide access to allow the fire stopping seals to be regularly inspected and maintained, as well as records kept of such maintenance at minimum periods of 12 months, as required by the Regulatory Reform Order, and repaired if necessary. Reference should be made to the relevant Code of Practice for the Installation and Inspection of Fire Stopping.

> Competency

It is vital that those entrusted to design or install a fire stopping product have the necessary levels of competence to undertake the task professionally and thoroughly. The level of competency required will be commensurate with the expected complexity of the building. All designers must eliminate, reduce or control foreseeable risks that may arise during installation, construction or maintenance when preparing or modifying designs. Clients should ensure that the principal designer and principal contractor carry out their duties under CDM regulations. The ASFP foundation course in passive fire protection provides essential knowledge as part of demonstrating competency and understanding in this key fire protection specialism.

> Additional Notes

For further information on installation requirements please confirm compatibility with your application, if in doubt please contact the technical team with your ceiling specification on: tel 01329 844 500 or email sales@astroflame.com

> Health and Safety

The product does not present any known health hazards during or after installation. Normal good industrial and personal hygiene practices should be observed. For further information on health and safety requirements please contact the technical team on: tel 01329 844 500 or email sales@astroflame.com


> Data Sheet Downloads

Download and review the following available data sheets for this product.

Key Information:
  • PDS's are Product Data Sheets
  • SDS's are Safety Data Sheets
  • TDS's are Technical Data Sheets
  • INT's are Install Data Sheets
  • VID's are Video Files
  • DoP's are Declaration of Performance
  • CoC's are Certificate of Constancy of Performance
  • ETA's are European Technical Assessment Sheet
  • UL Documentation are UL - EU Certificate

> Delivery/Returns

For in-stock items orders received before 2pm (Monday-Friday) are generally dispatched for delivery on the following working day (Monday-Friday). All dates quoted for despatch are estimates only and are not guaranteed. We will endeavour to meet these dates but shall have no liability for any delay in despatch or delivery or any damage or loss occasioned thereby. We may deliver products pursuant to any order by instalments. If we are unable to deliver the goods for any reason,you will be contacted and you will not be obliged to pay for the goods which have not been delivered, you also have the option to cancel the goods that have been delivered, however we shall not be liable for any loss of income or profit which may have been caused by the delay or non delivery of goods.

For information about our returns policy please click here.

> Ask a Question

If you've got a question about this product or need some technical help get in touch with the Astroflame sales or technical team to discuss your requirements today. We are open Monday to Friday 8:00am to 5:30pm. You can always contact us on the following:

T: 01329 844 500

E: sales@astroflame.com
